Automatic carbonated sparkling water filling machine / glass bottle filling machine

FOB Reference Price:Get Latest Price
US $29,000-35,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Packaging Material:
Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
ajusted
Power:
3.5kw
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ZHONGGUAN
Model Number:
GXGF-16-16-5
Weight:
5000KGS
Certification:
ISO9001,UL,CE
After-sales Service Provided:
Engineers available to service machinery overseas
material:
SS304
bottle volume:
330-1500ml
controlled by:
PLC
PLC:
Siemens
quality:
excellent
cap type:
metal crown cap
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
sea-worthy wooden case
Port
shanghai
Lead Time :
40days after receiving the deposit

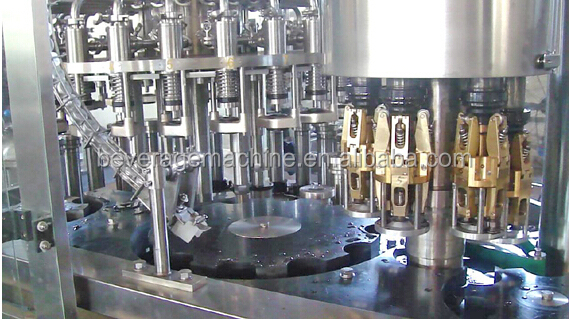

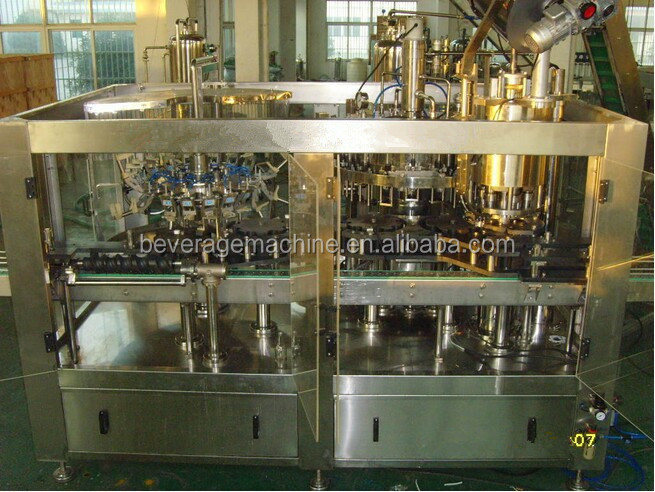

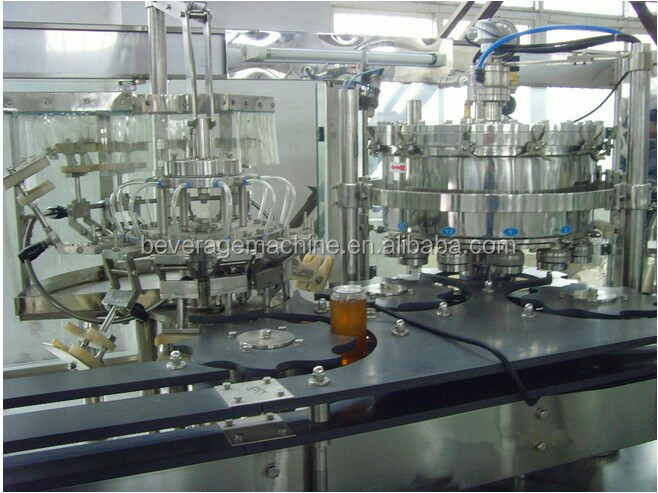

Automatic carbonated sparkling water filling machine / glass bottle filling machine

GXGF-W series machine is used for rinsing filling and capping wine, alcohol,vodka, whisky and other non-carbonated drink. with glass bottle. The machine adopts advanced PLC control technology, the key electric elements adopt world famous brand, such as Siemens, Omron, Mitsubishi, Festo SMC,etc.







  • This kind of machine is specially designed for filling glass bottles.
  • This machine uses spring type mechanical device to elevate glass bottles, big bearings to support wine tank above filling valves.
  • It has the function of closing the filling valves when there is broken bottle, and washing away broken bottles. The vent pipe has automatic foam-removing device.
  • It is driven through gears inside the machine frame.
  • this machine is fully automatic filling machine. It is suitable for filling wine, water and other liquids into glass bottle.
  • It is 3in1 monobloc filling machine, including glass bottle rinsing, filling and capping.
  • it is suitable for sealing screw caps and pressing crown caps.



Main technical parameters:

Model

BXGF14125

BXGF16165

BXGF24248

BXGF32328

BXGF404010

BXGF505012

BXGF606015808020

Filler/Capper heads

14125161652424832328404010505012606015808020

 Bottle diameter(mm)

φ=50-100         H=170

φ=50-110          H=160-340

Production capacity(350ml)(b/h)

2000~40004000~60008000~1000010000~1250012500~1500016000~2000020000~2400026000~32000

 Filling temperature ºC

0~5

 Filler type



 normal pressure filler

 Spraying pressure(Mpa)

0.2-0.25

 Filling pressure(Mpa)

0.15~0.350.2~0.4

 Motor power(kw)

2.2+0.55+0.12

2.2+0.55+0.18

3+0.55+0.18

5.5+0.55+0.18

7.5111519

 Overall dimension (L*W*H)mm

2300*1600*2500

2600*1920*2550

3100*2200*2800

3850*3000*2850

4850*3800*2750

5750*3550*2750

6500*5500*2750

7680*6640*2650

Weight(kg)

2800365048006800865010500











Production Flow







Company Information




Packaging & Shipping







Our Services





 1. 2 year's quality guarantee

 2.Our techncians are availble to go to customer's plant for installation,trial run and free       trainning
 3.24hours technical support by e-mail or by camera video tools
 4.spare parts are available by courier at any time if neccessary
 5.manual books and detailed Videos are available
