QGF-450 5 Gallon Water Filling Bottle Cap Sealing Machine 450BPH

  • >=1 Sets
    $28,000.00
Power:
3.5KW
Model Number:
QGF-300
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years, 2 Years
Packaging Type:
Barrel
Packaging Material:
Plastic
Type:
Filling Machine
Applicable Industries:
Food & Beverage Factory
Condition:
New
Application:
Beverage, water
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Place of Origin:
Jiangsu, China
Brand Name:
zhongguan
Dimension(L*W*H):
4200*1500*1600mm
Weight:
3500KGS
Certification:
ISO,SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Capacity:
300BPH
filling type:
grativity filling
main material:
SS304
Processing Types:
mineral Water
Usage:
Beverage Packaging
Bottle type:
10-20L Bottle
Filling material:
water
Function:
Bottle Washing Filling Capping
Material:
316L+304 Stainless Steel
Supply Ability
Supply Ability:
20 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case and wooden block
Port
SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

QGF-450 5 gallon water filling bottle cap sealing machine 450BPH

Product Description

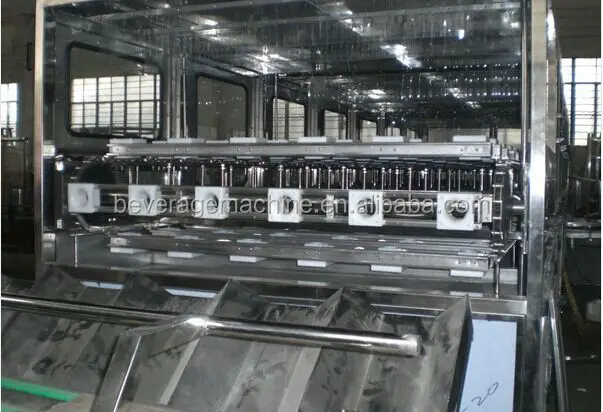

This filling specially produce 3-5gallons barreled drinking water,Production capacity from 100 to 1200barrels per hour,It intergrates bottle washer,filler and sealer into one unit,In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid.washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps automatically.This line equips with water spraying device to sterilize caps of bottled to ensure caps are aspetic and heathly.Also this line can automatically feeding,washing .sterilizing filling caping counting and products discharging.It is new kind of barreled water auto-production line,which is intergrates mechanism,electricity and pneumatics technology together.





Main technical specifications:

Model

QGF-100

QGF-300

QGF-450

QGF-600

QGF-900

QGF1200

Filling heads

1

2

3

4

6

9

Volume(L)

18.9

18.9

18.9

18.9

18.9

18.9

Capacity(b/h)

100

300

450

600

900

1200

Gas consumption (m3/min)

0.37

0.6

0.8

1

1.5

1.8

Moto power (kw)

1.38

3.8

5.6

7.5

9.75

12.5

Weight(kg)

680

1500

2100

3000

3500

4200

Size(W*L*H)(m)

0.5*4.0*1.5

0.9*4.0*1.5

1.3*4.0*1.5

1.8*4.0*1.5

2.4*4.0*1.5



3.0*4.0*1.5



Packaging & Shipping







Our Services





1. 2 year's quality guaranty.

 2.Our techncians are availble to go to customer's plant for installation,trial run and free       trainning
 3.24hours technical support by e-mail or by camera video tools
 4.spare parts are available by courier at any time if neccessary
 5.manual books and detailed Videos are available





FAQ

  Payment term:

Via T/T,L/C

30-50% as desposit,50-70%as balance sent after finished produce the machines.



We strictly manufacture and manage according to IOS9001:2000 System.And we sincerely welcome customers all over the world vist our company,or browse,visit our website.Any requirement,please contact us via E-mail,we will provide beat service for customers
