2500bph automatic soft drink manufacturing machine line

  • 1 - 1 Sets
    $12,800.00
  • >=2 Sets
    $11,800.00
Power:
3.5kw
Model Number:
DXGF 8-8-3
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Number of filling heads (Min. Order: 8 Sets)
Number of rinse heads (Min. Order: 8 Sets)

More

Number of caps heads (Min. Order: 3 Sets) Less
Samples:
$200.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years, 2 Years
Packaging Type:
Cartons
Packaging Material:
Wood
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Beverage, Food
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
ZHONGGUAN
Dimension(L*W*H):
3100*2400*2350
Weight:
4000KG
Certification:
ISO CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Name:
Carbonated Drink Filling Machine
Processing Types:
Air-contained Beverage
Function:
Bottle Washing Filling Capping
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
Applicable export wooden case
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
2500bph automatic soft drink manufacturing machine line
Machine introduction :
DXGF carbonate drink filling machine, integrating with washing, filling and capping part, it realizes full-automation in the whole process, suitable for polyester bottle and plastic bottle filling of carbonate beverage,like: soda, cola and so on.
The bottle types applicable for various parts are easily,conveniently and rapidly adjustable.It adopts new isobaric pressure filling. Compared with the machines of the same specification, the capacity of this machine is larger.Machine adopts advanced Mitsubishi programmable logic controller (PLC) to control.
The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.
Product Description
                                         Conveyor
Driving plate style feeding star-wheel, it is suitable for different bottle size and no needto change the height of machine
                                                      304 stainless steel washing pumps
 All 304 stainless steel rinser heads,  water spray style inject design, more  save water consumption & more clean  304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

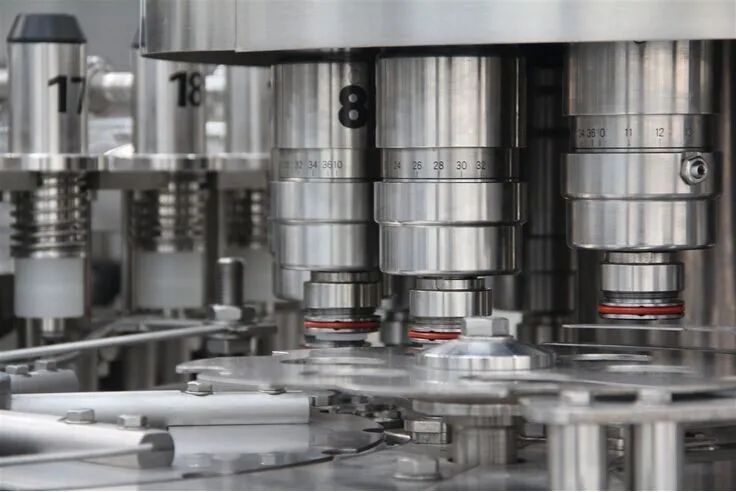

                                                                            Filler
High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling
                                                                        capper station
Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle
Type
Washing Nos
Filling Nos
Capping Nos
Capacity
DXGF 8-8-3
8
8
3
2000BPH
DXGF 14-12-5
14
14
5
5500BPH
DXGF 16-16-5
16
16
5
8000BPH
DXGF 24-24-8
24
24
8
12000BPH
DXGF 32-32-8
32
32
8
15000BPH
DXGF 40-40-10
40
40
10
18000BPH
DXGF 50-50-15
50
50
15
24000BPH
Entire line
Related Products
More Product
About ZhongGuan

Zhangjiagang zhongguan Machinery CO.,LTD.

Zhangjiagang zhongguan machinery CO.,LTD. is located in Zhangjiagang city,one hour trip from Shanghai city.Tecreat is a professional filling&package solution manufacturer from China,dedicated to manufacture kinds of filling&packaging equipment &water treatment system for beverage&food field.

certificate

Exhibitions

We have 2-3 exhibitions every year.

Partner

We do business with multiple brands in multiple countries

Customers

We have gained more Consumer trust
Our Service

What can ZhongGuan offer you ?


Warranty

1.We guarantee all our machine, parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the machine in the     factory.
3.After warranty ,we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we     get it and offer you a good solution to solve the problem.

Packaging&shipping

Packaging

As usual, we adopt wooden case as package type. It's suitable for long-distance transport.According to customers' special demand, we could adopt sheet iron case and so on.

Shipping

Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

FAQ
Payment term:
 Via T/T,L/C 30-50% as desposit,50-70%as balance sent after finished produce the machines.
 We strictly manufacture and manage according to IOS9001:2000 System.And we sincerely welcome customers all over the world vist our company,or browse,visit our website.Any requirement,please contact us via E-mail,we will provide beat service for customers
