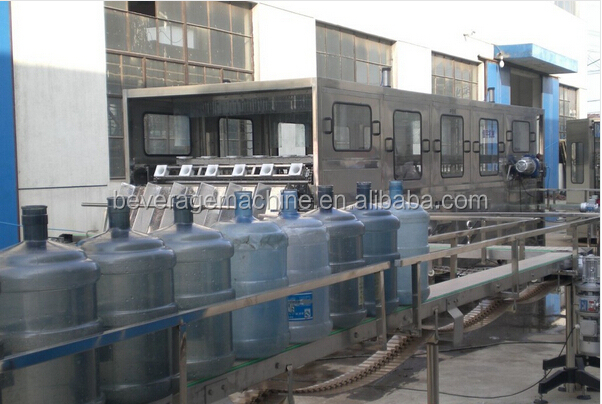

300BPH 5 gallon bottle drinking water filling machine / line / equipment
Functions ; 5 gallonwater filling line is used for 5gallon bottle water
productdion , such as mineral water ,pure water , drinking water ,cleaned natural water for
drinking and so on , this water production line high autoamtically and very popular in the water
plant from all over the world .
Main equipment items of the barrel production line :
The whole line is composed by the following
Automatic two heads de-capping machine
Automatic rotate barrel outside brushing machine
Automatic barrel loading system

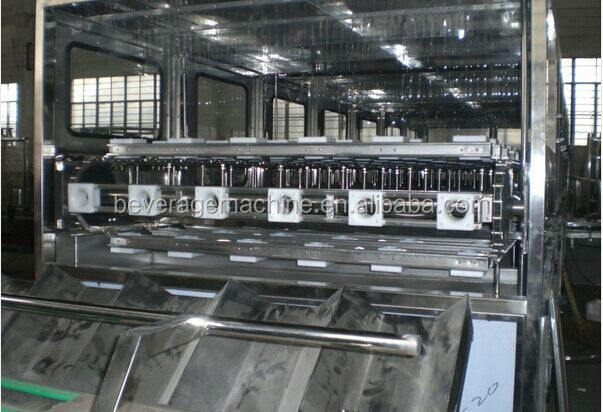

Automatic barrel washing machine
Automatic rotate filling and capping machine 2-in-1
Automatic cap washing and loading system
Sleeve label machine with shrinking tunnel
Automatic barrel palletizer machine
Take note:the detail machines according to the user’s requirements .
Filling tecnical description:
filling technics and structure is designed and innovated by ourselves. It adopts
large fluent filling and fix quantify filling . filling valve is SUS fine casting process,
it has airproof ring to avoid attrition of the metal .it is control by cylinder , and it is
stabilization . in the filling process, barrel after washing transport to covey barrel screw.
The covey barrel screw apart the barrel equality to star-wheel. The star-wheel lead the
barrel to filling system. When the filling cylinder meet journey switch, cylinder moves
down to open filling valve. Filling valve start to fill. After filling , cylinder meet with journey
switch again and move up. Filling valve close. The barrel after filling export by star-wheel.
And transport to capping machine by chains. Filling parts has 8 filling valves to satisfy the speed of the machine . at the same time , liquid position is nicety because of controlling by journey switch.
Main configuration for the whole water production line :
The whole line is controlled by SS electrical carbinate with touch screen ,PLC and transducer
brand is Japan Mitsubishi .water pump adopts the most famous brand in China named
NANFANG ,Motor reducer adopts the joint venture brand .penumatic system adopts AIRTAC.
Main technical specifications:
Gas consumption (m3/min)
Moto power (kw)
Packaging & Shipping
1. 2 year's quality guaranty.
2.Our techncians are availble to go to customer's plant for installation,trial run and free trainning 3.24hours technical support by e-mail or by camera video tools 4.spare parts are available by courier at any time if neccessary 5.manual books and detailed Videos are available
30-50% as desposit,50-70%as balance sent after finished produce the machines.
We strictly manufacture and manage according to IOS9001:2000 System.And we sincerely welcome customers all over the world vist our company,or browse,visit our website.Any requirement,please contact us via E-mail,we will provide beat service for customers
