turnkey project auto wine bottle labeling machine plant

  • 1 - 1 Sets
    $12,900.00
  • >=2 Sets
    $12,400.00
Power:
AC220V, 50/60HZ, 1.5 KW
Model Number:
SL-300
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years
Packaging Type:
Bottles
Packaging Material:
Plastic
Type:
Wrapping Machine, Labeling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
AC220V, 50/60HZ, 1.5 KW
Place of Origin:
Jiangsu, China
Brand Name:
ZhongGuan, zhongguan
Dimension(L*W*H):
780MM * 1200MM * 2000MM
Weight:
50Kg/H
Certification:
CE,ISO9001
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training
Key Selling Points:
Automatic
Host machine:
AC220V,50/60HZ,1.5KW, single-phase
Production speed:
6000-30000b/h
Length of label:
30mm-250mm
Diameter of bottle body:
28mm-125mm
Material of label:
PVC,PET,OPS
Thickness of label:
0.03mm-013mm
Size of the label sleeving host machine:
L780MM*W1200MM*H2000MM
Bulk of steam shrinking label::
L1800mm*W500mm*H1500m
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Packing with Reinforcement device
Port
shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated

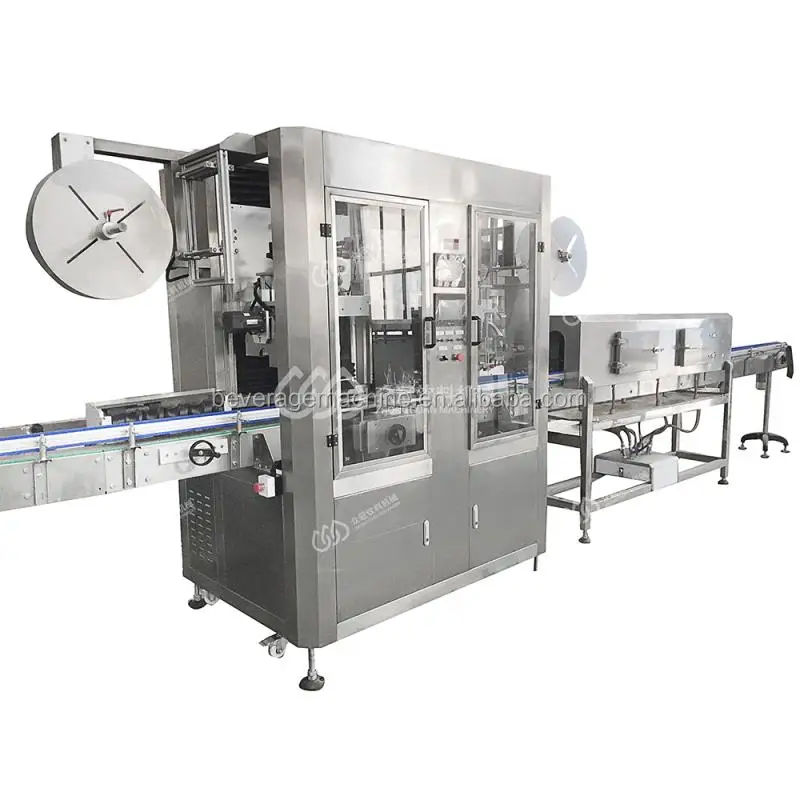

turnkey project auto wine bottle labeling machine plant
Product Description

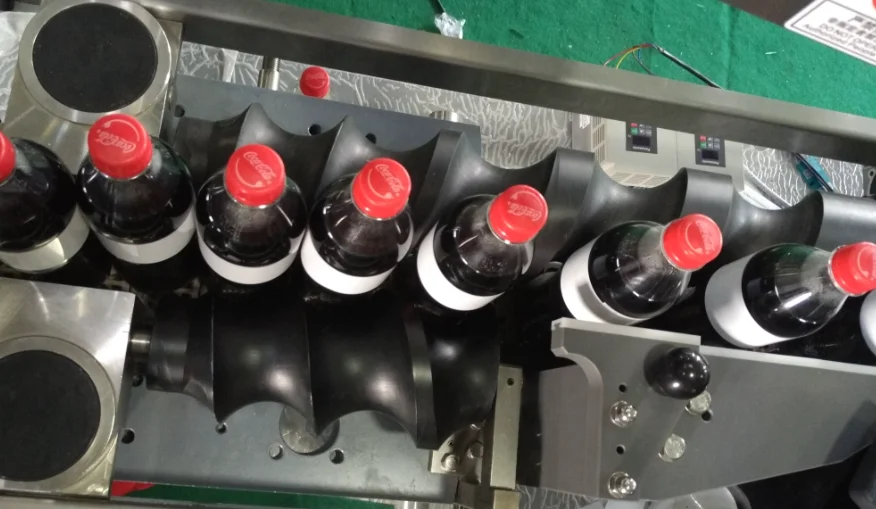

                                         Conveyor
                                                             Using the conveyor system to enter the bottle

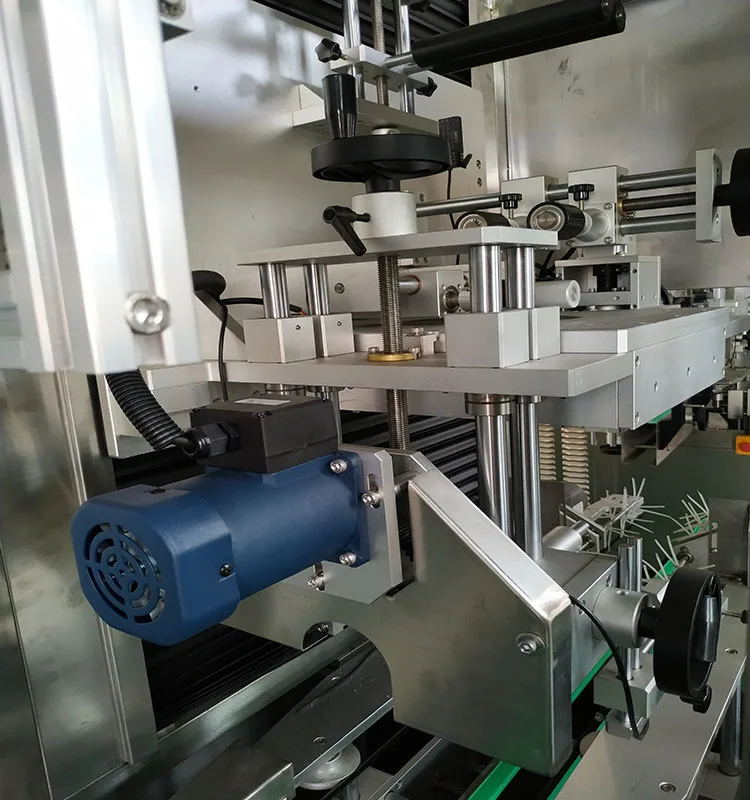

                                                                                                                                                                    Set label
                                                           It adopts che imported color fouch screenThe machine can operate at the same limited velocity and there is no bottle overtu rning or label missing

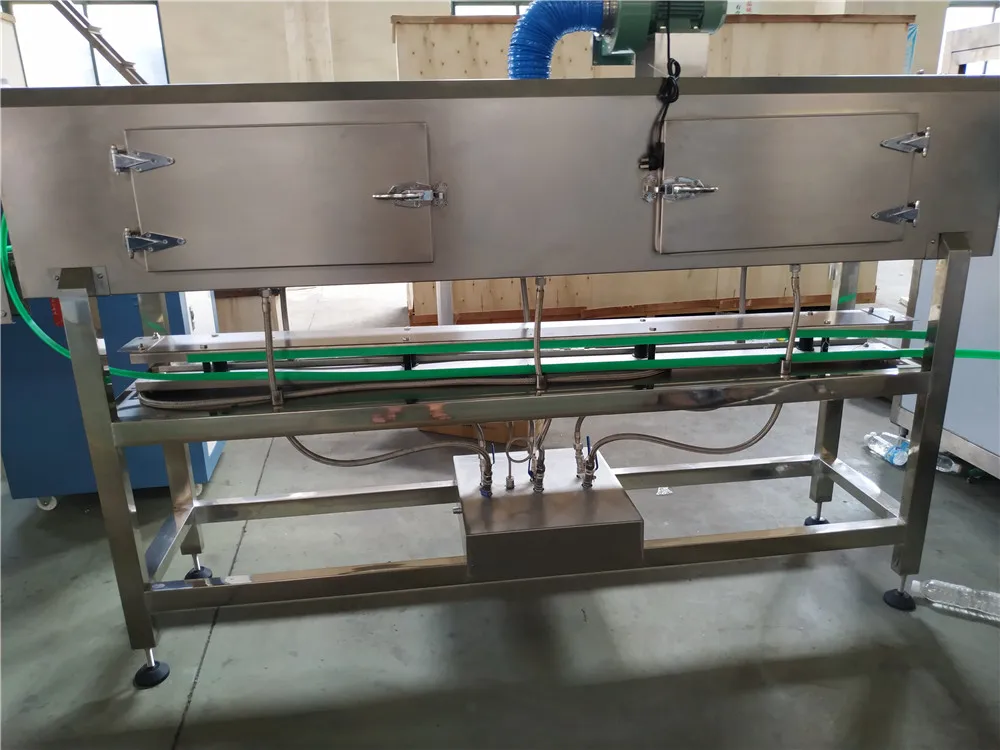

                                                                                                                                                                                      Shrink wrapper
All the transfer system is controlled by frequency changing devices With stable and smooth transfer speed.
                                           Detail list of Selecting and Using the Accessor
Clean-down unit
Low power a-c dynamo
5IK120A-CFT
TWT
Taiwan
Feeding unit
Low power a-c dynamo
RV50-15K-180
TWT
Taiwan
Bottle Carrying unit
Low power a-c dynamo
5IK90GN-YFT-5GN20K
TWT
Taiwan
Bottle Separation unit
Low power a-c dynamo
5IK90GN-YF-5GN10K
TWT
Taiwan
Hairbrush unit
Low power a-c dynamo
4IK25GN-CFT-4GN3K
TWT
Taiwan
Cutter head unit
Cutter head servo motor
MHMD042P1U(400w)
Panasonic
Japan
Electric eye unit
High speed fibre-optical inductor
FX-301
Panasonic
Japan
Bottle monitor unit
Photoelectricity inductor
CX-442
Panasonic
Japan
Conveyor unit
Frequency converter
VFO-0.75KW
Panasonic
Japan
Entire line
Related Products
More Product
Certifications
About ZhongGuan

Zhangjiagang zhongguan Machinery CO.,LTD.

Zhangjiagang zhongguan machinery CO.,LTD. is located in Zhangjiagang city,one hour trip from Shanghai city.Tecreat is a professional filling&package solution manufacturer from China,dedicated to manufacture kinds of filling&packaging equipment &water treatment system for beverage&food field.

Exhibitions

We have 2-3 exhibitions every year.

Partner

We do business with multiple brands in multiple countries

Customers

We have gained more Consumer trust
Our Service
What Can ZhongGuan Offer You?

Warranty

1.We guarantee all our machine, parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the machine in the     factory.
3.After warranty ,we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we     get it and offer you a good solution to solve the problem.

Packaging&shipping

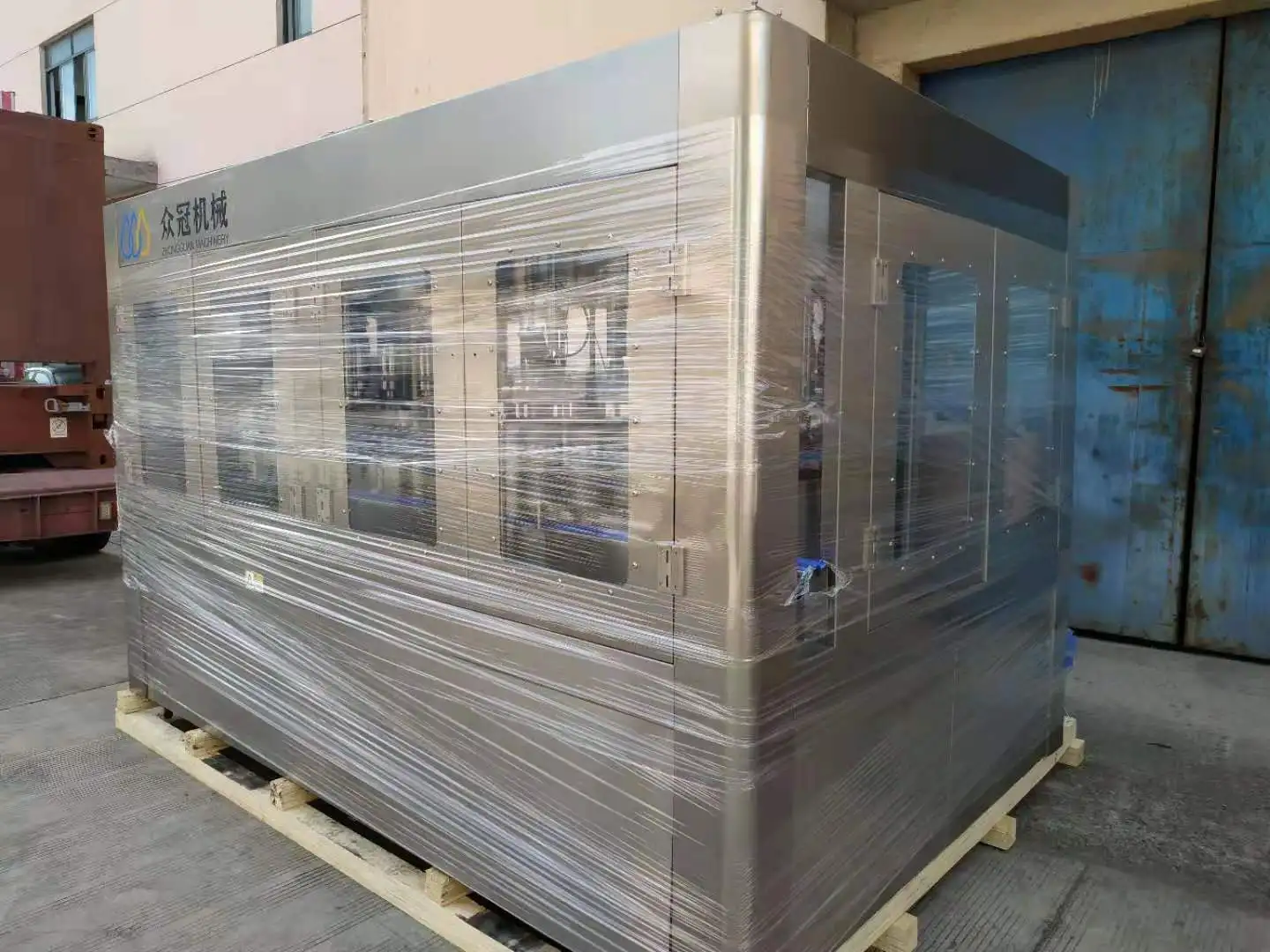

Packaging
